Applications

The FLAIR 325 and 400 heat / energy recovery ventilation systems have the highest efficiency ratios in North America as Certified by PHI, while also being one of the most compact units in its class. Systems are quiet, provide MERV 13 filtration, have very high heat recovery efficiencies (up to 91% per PHI) and are super-efficient - utilizing next gen ECM motors which allow you to optimize your high performance design.

Advantages

• Highest heat and energy recovery efficiencies
• Super-efficient, next gen ECM motors (0.21W/m3*hr)
• Even at maximum flow, the noise level can be kept inaudible in rooms
• Everything included in standard unit: pre-heater and dry "ball" siphon
• Highly insulated housing

Properties

• Brink FLAIR units come in four sizes, each named for the metric volume of air they can deliver. All are available as HRV or ERV:

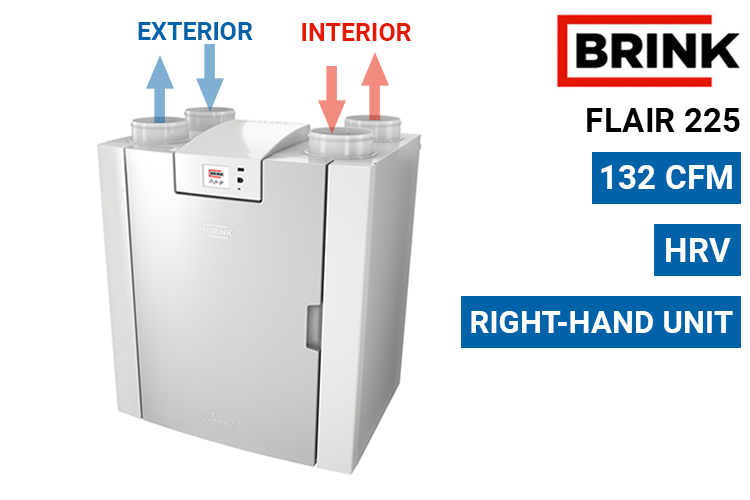

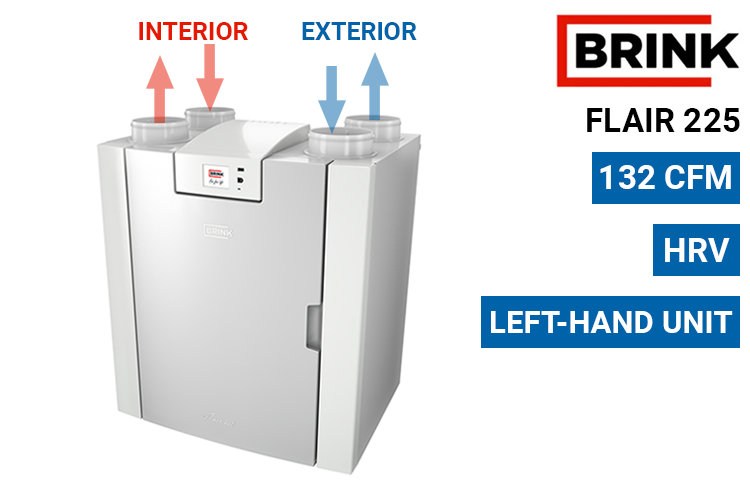

  • FLAIR 225: 225 m3/hr (132 CFM)
  • FLAIR 325: 325 m3/hr (192 CFM)

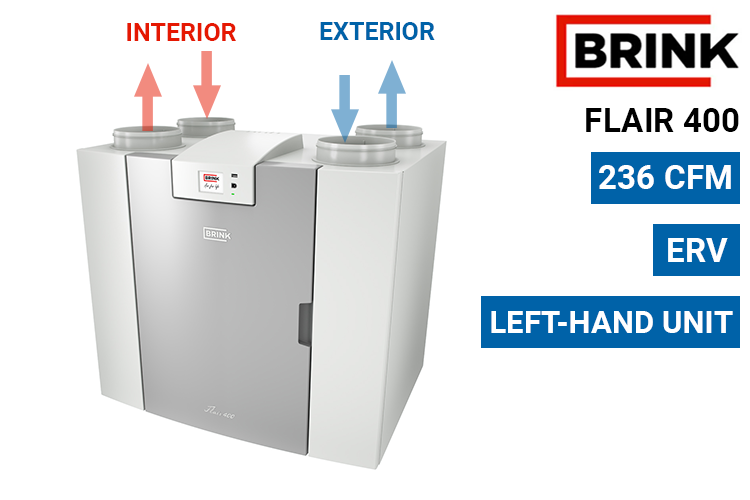

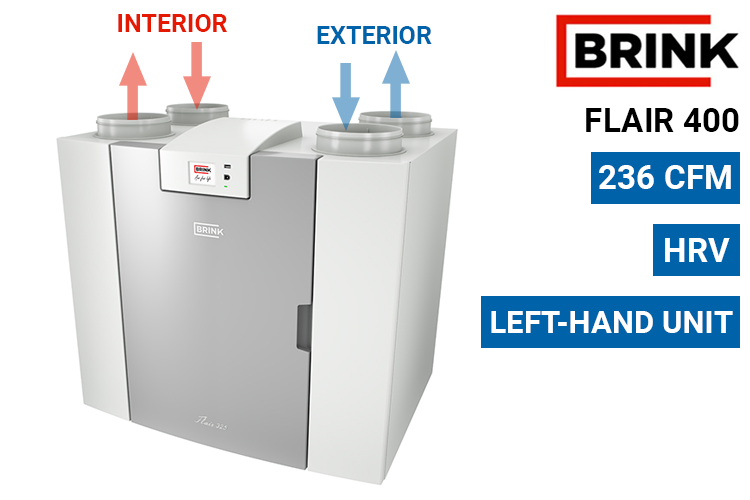

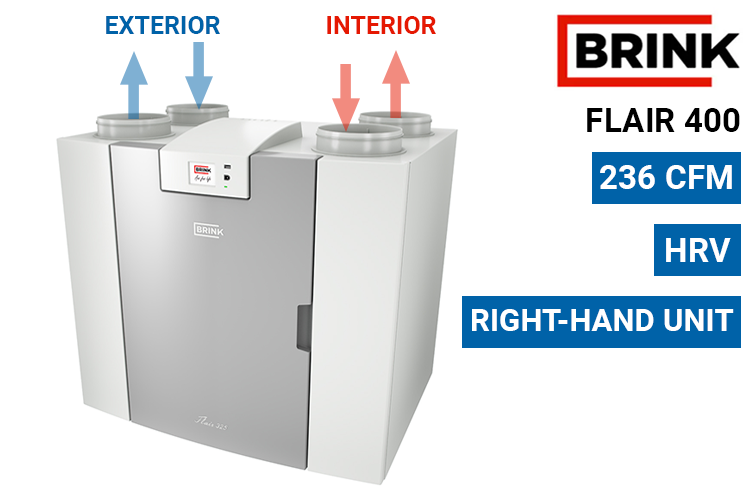

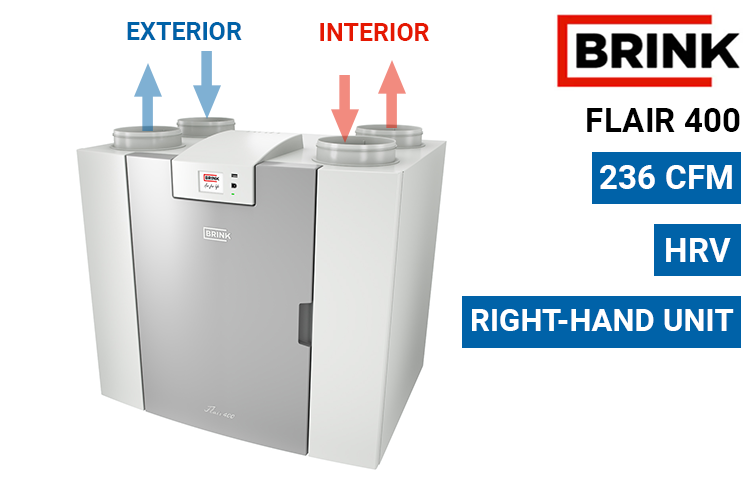

  • FLAIR 400: 400 m3/hr (236 CFM)

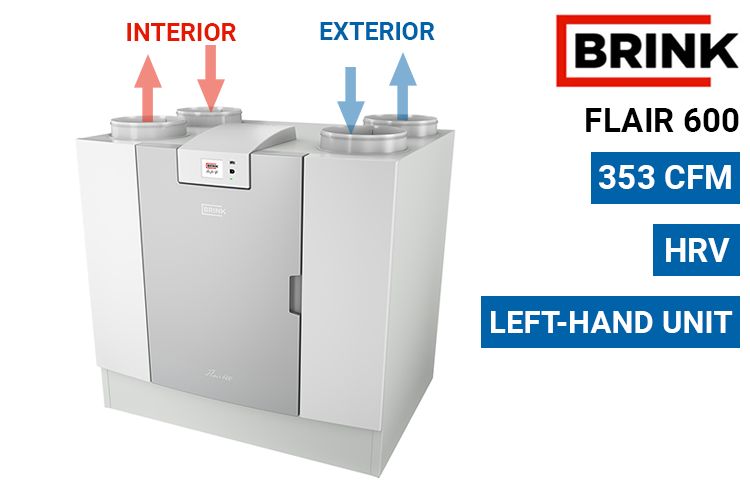

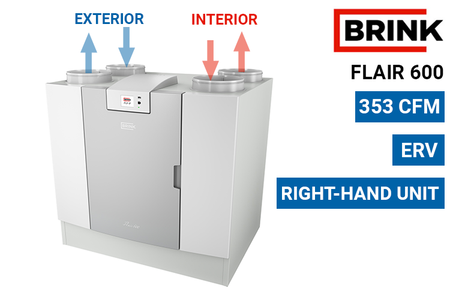

  • FLAIR 600: 600 m3/hr (353 CFM)
• Most efficient HRV/ERV option: PHI Efficiency up to 91% with up to 77% humidity recovery
• MERV 13 Filters
• Most accurate constant flow regulator, for most accurate balancing of supply and exhaust air flows
• Standard unit includes connectors for CO₂, RH and boost switches
• 100% bypass included, for free shoulder season/night time cooling (no heat recovery)
• Very easy to maintain - only one tool needed
• FLAIR 325 & 400 each Certified to UL 1812 / CSA C22.2 (certification pending for FLAIR 225 & 600)
