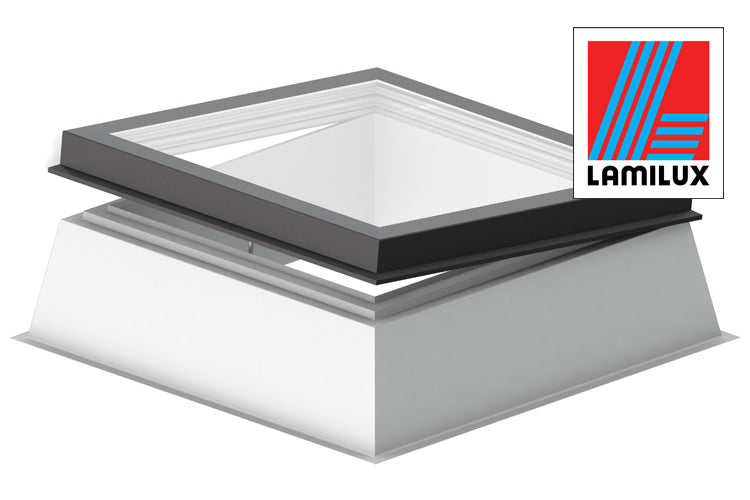

Lamilux FE Passivhaus

Approximately 13-15 week lead time For custom sizes or large orders, request a quote.
REQUEST A QUOTE

Applications

Passive House (PHI) Certified skylight with triple or quadruple layer glazing and a thermal bridge free frame. Ideally suited for Passive House and Enerphit Certified projects or high performance buildings.

Advantages

  • First skylight certified to Passive House standard
  • Highest Passive House efficiency class – phA advanced component
  • Kink free isotherms maximize the efficiency of the installed skylights and minimize heat loss and risk of condensation

Properties

  • Uskylight (installed): 0.148 BTU/hr.ft2.°F (0.84 W/m2K) DIN EN 10077
  • Uglass: 0.105 BTU/hr.ft2.°F (0.6 W/m2K) per EN 673
  • Triple pane glass – Laminated interior pane, float middle, Tempered exterior (8-14-4-14-6mm)
  • SHGC: 0.49 (as low as 0.3 by request)
  • Visual Transmittance: 0.7 (at 49SHGC) and 0.6 (at 30SHGC)
  • Highest airsealing class – 4 (DIN EN 12207)
  • Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (6:12 pitch)
Dimensions

Curb bottom opening sizes:

  • 80 cm x 80 cm (31 1/2" x 31 1/2")
  • 90 cm x 90 cm (35 3/8" x 35 3/8")
  • 90 cm x 120 cm (35 3/8" x 47 1/5")
  • 100 cm x 100 cm (39 3/8" x 39 3/8")
  • 100 cm x 150 cm (39 3/8" x 59")
  • 100 cm x 200 cm (39 3/8" x 78 3/4")
  • 120 cm x 120 cm (47 1/5" x 47 1/5")
  • 150 cm x 150 cm (59" x 59")
  • 180 cm x 180 cm (70 4/5" x 70 4/5")

Project Examples

Lamilux FE with a thermal bridge free frame to optimize high performance construction.

Lamilux FE Circular skylight is fitted on a circular, thermal bridge free, insulated curb made of fiber-reinforced composite.

Lamilux FE 3 Degree high performance triple pane skylight with a built-in 3-degree slope.

Lamilux FE Exit Hatch triple pane roof access skylight, manually operated via pneumatic pistons using lockable latch.
